Name: BMT Tire Cart Giant XL - 3 levels - 48 tires
SKU: 45
Availability: InStock

Description

The BMT tire carts impress with the following advantages:

Solid and galvanized components

The BMT tire carts consist of very solid and stable components, which are also completely galvanized. The relatively high weight ensures the outstanding stability of the tire cart.

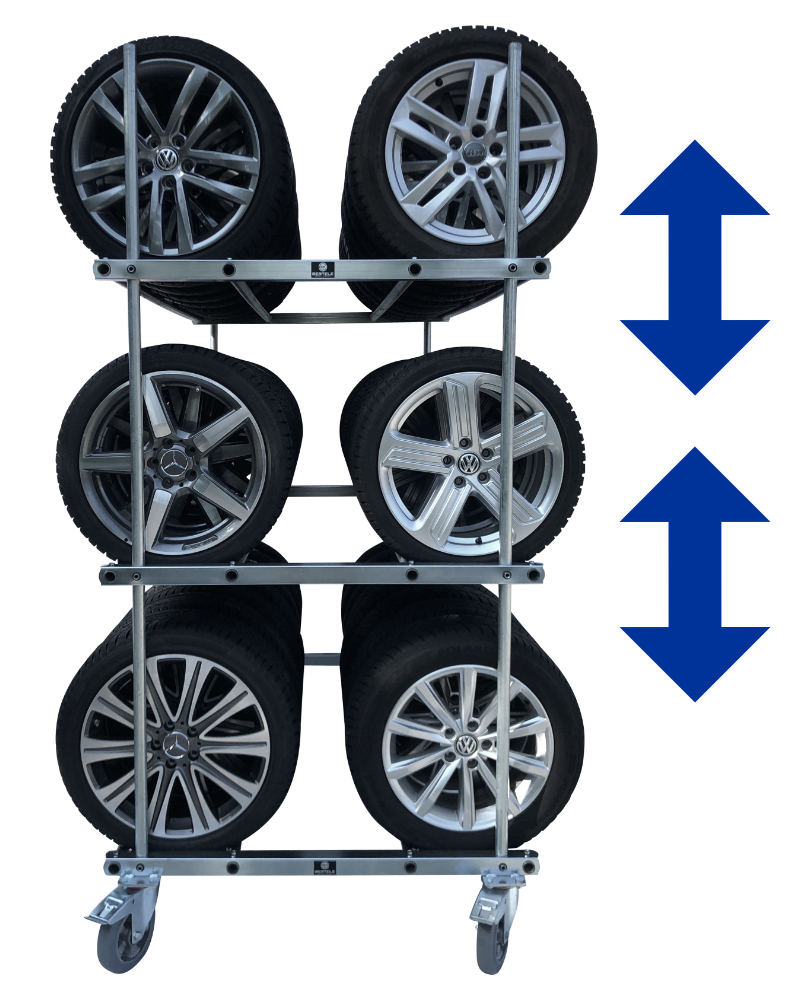

Infinitely height adjustable

Thanks to the innovative clamping system, the BMT tire carts are infinitely height-adjustable. This has the advantage for you that you can optimally adapt the distances to the tire sizes.

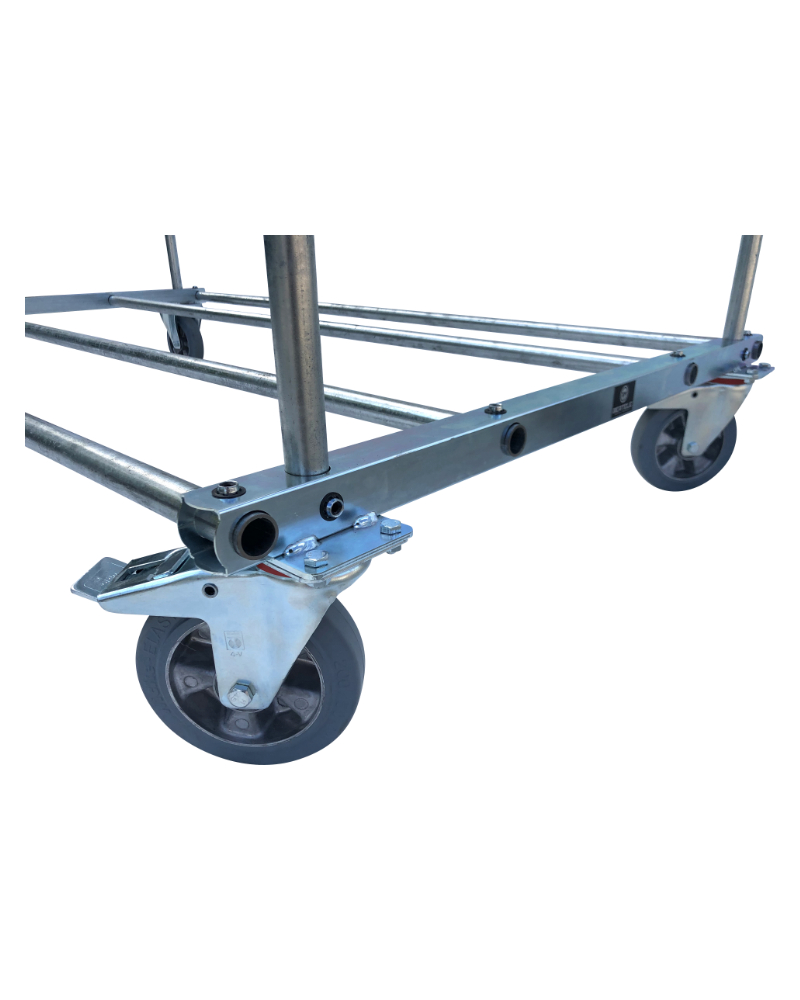

High quality elastic solid rubber castors

High-quality elastic solid rubber castors from the German manufacturer Wicke are used. The castors are characterized by very low start-up and rolling resistance. You will be amazed at how little effort you can move a fully loaded tire cart yourself.

Usable width 1890 mm - for 4 sets of tires per level

The usable tire car width of 1890 mm is ideal for storing 4 sets of tires per level. This means that you can align 4 rims to the left and 4 rims to the right per row of tires, which prevents the tires from tipping over.

Notes:

Different dimensions are easily possible and available on request.
The BMT tire carts are equipped with 2 swivel castors with brakes and 2 fixed castors as standard. On request, we can also supply the tire cart with 4 swivel castors at no extra charge.

Disassembled delivery as a kit with the following scope:

4 x standpipe 2200 mm
12 x cross pipe 2000 mm
4 x pipe holder 1180 mm incl. screws
2 x pipe holder 1180 mm with welded flange plates incl. screws
2 x Wicke elastic solid rubber swivel castors with brakes (non-marking, castor diameter: 200mm, ball bearings)
2 x Wicke elastic solid rubber fixed castors (non-marking, castor diameter: 200mm, ball bearings)
16 x M10 screw with nut for screwing the castors
Assembly instruction

The maximum diameter of opposite tires is 800 mm.

When installing and operating the BMT tire carts, please observe the safety instructions which must be observed in accordance with the tested statics.

Additional information

External dimensions WxHxD	2150 x 2450 x 1180 mm
Tire capacity	48 Tires
Load capacity per level	400 kg
Weight	109 kg
Castors	Elastic solid rubber, Ø 200 mm, ball bearing, non-marking
Outer diameter of the round pipes	33,7 mm (1 inch)
Dimensions of the square pipes	50x50x2 mm
