Variants

There is the right tire rack for everyone.

Single Racks, Double Racks and Double Racks XL

The BMT tire racks are available as standard as:

Single Racks: 1 row of tires
Double Racks: 2 rows of tires, maximum diameter of opposite tires 730 mm
Double Racks XL: 2 rows of tires, maximum diameter of opposite tires 800 mm

All racks are 2000 mm wide. Due to the useful width of 1890 mm, 8 tires can be stored in each tire row (with an average tire width of 235 mm).

Download – Flyer BMT Tire Racks

3 to 9 levels

According to the tested statics, all BMT tire racks are available with a height of 3 to 9 levels. Via our online shop you can order 3, 4, 5 and 6 levels of racks. Racks from 7 to 9 levels are available on request. The height of the racks is by default:

3 levels	4 levels	5 levels	6 levels	7 levels	8 levels	9 levels
2200 mm	3000 mm	3800 mm	4600 mm	5400 mm	6200 mm	7000 mm

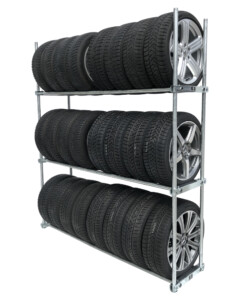

Single Racks

BMT Tire Rack Single
3 levels

Tire capacity: 24 tires
WxHxD: 2000 x 2200 x 480 mm
Load capacity per level: 250 kg
Weight: 55 kg
Modularly expandable with extension racks

BMT Tire Rack Single
4 levels

Tire capacity: 32 tires
WxHxD: 2000 x 3000 x 640 mm
Load capacity per level: 250 kg
Weight: 77 kg
Modularly expandable with extension racks

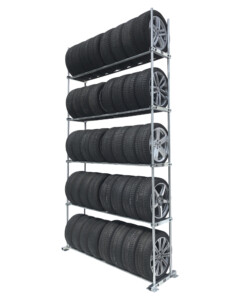

BMT Tire Rack Single
5 levels

Tire capacity: 40 tires
WxHxD: 2000 x 3800 x 640 mm
Load capacity per level: 250 kg
Weight: 96 kg
Modularly expandable with extension racks

BMT Tire Rack Single
6 levels

Tire capacity: 48 tires
BxHxT: 2000 x 4600 x 640 mm
Load capacity per level: 250 kg
Weight: 115 kg
Modularly expandable with extension racks

Double Racks

BMT Tire Rack Double
3 levels

Tire capacity: 48 tires
WxHxD: 2000 x 2200 x 1040 mm
Load capacity per level: 500 kg
Weight: 92 kg
Modularly expandable with extension racks

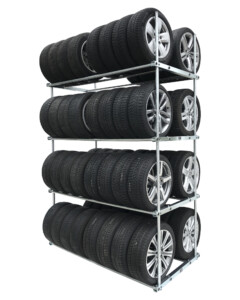

BMT Tire Rack Double
4 levels

Tire capacity: 64 tires
WxHxD: 2000 x 3000 x 1040 mm
Load capacity per level: 500 kg
Weight: 123 kg
Modularly expandable with extension racks

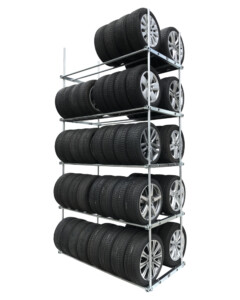

BMT Tire Rack Double
5 levels

Tire capacity: 80 tires
WxHxD: 2000 x 3800 x 1040 mm
Load capacity per level: 500 kg
Weight: 154 kg
Modularly expandable with extension racks

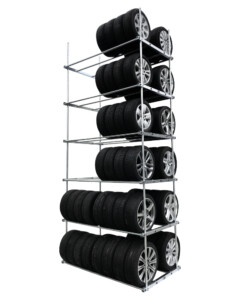

BMT Tire Rack Double
6 levels

Tire capacity: 96 tires
WxHxD: 2000 x 4600 x 1040 mm
Load capacity per level: 500 kg
Weight: 185 kg
Modularly expandable with extension racks

Double Racks XL

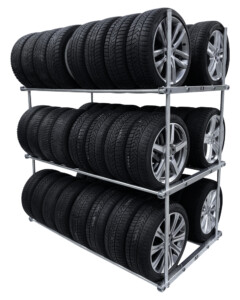

BMT Tire Rack Double XL
3 levels

Tire capacity: 48 tires
WxHxD: 2000 x 2200 x 1180 mm
Load capacity per level: 500 kg
Weight: 94 kg
Modularly expandable with extension racks

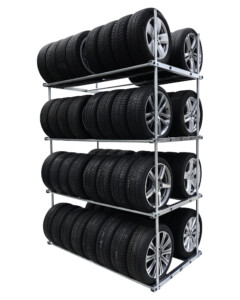

BMT Tire Rack Double XL
4 levels

Tire capacity: 64 tires
WxHxD: 2000 x 3000 x 1180 mm
Load capacity per level: 500 kg
Weight: 126 kg
Modularly expandable with extension racks

BMT Tire Rack Double XL
5 levels

Tire capacity: 80 tires
WxHxD: 2000 x 3800 x 1180 mm
Load capacity per level: 500 kg
Weight: 158 kg
Modularly expandable with extension racks

BMT Tire Rack Double XL
6 levels

Tire capacity: 96 tires
WxHxD: 2000 x 4600 x 1180 mm
Load capacity per level: 500 kg
Weight: 189 kg
Modularly expandable with extension racks

Practical tips

If you operate your tire storage manually (e.g. with a tire truck), we recommend planning a walkway between the tire racks of approx. 900 mm.

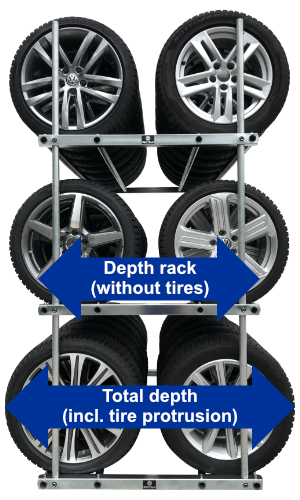

In addition, when planning your tire storage, we ask you to consider that the tires protrude to the side of the rack and that you therefore have to plan more space in the depth. The actual “total depth” depends on the size of your tires. Experience has shown that we recommend that you use the values given below.

BMT-Reifenregal-Doppel-Tiefe-Regal-ohne-mit-Reifenueberstand

Single Rack

Depth rack (without tires):
480 mm / 640 mm

Total depth (incl. tire protrusion):

730 mm

Double Rack

Depth rack (without tires):
1040 mm

Total depth (incl. tire protrusion):

1460 mm

Double Rack XL

Depth rack (without tires):
1180 mm

Total depth (incl. tire protrusion):

1600 mm
