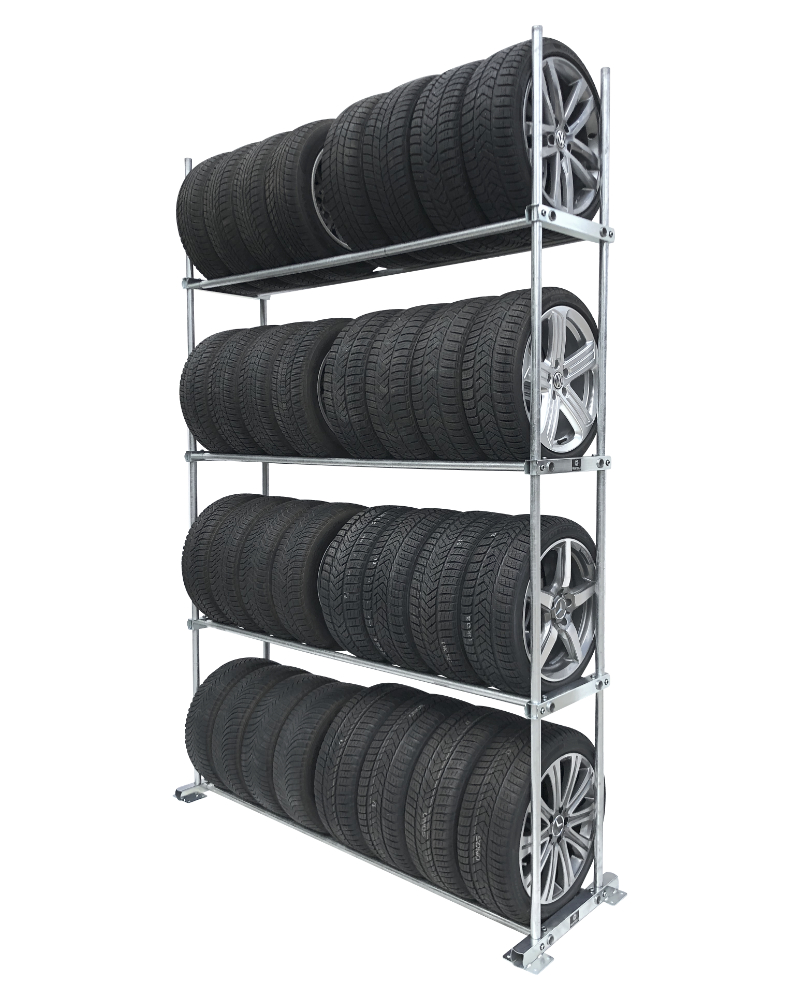

Name: BMT Tire Rack Single - 4 levels Base Rack
SKU: 3
Availability: InStock

Description

Disassembled delivery as a kit with the following scope:

4 x standpipe 3000 mm
8 x cross pipe 2000 mm
6 x pipe holder 480 mm incl. screws

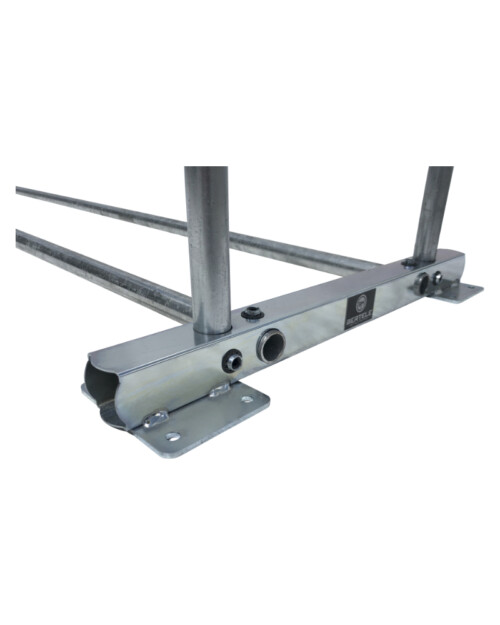

2 x pipe holders 640 mm incl. screws (welded flange plates for floor anchoring)
Assembly instruction

Note: The dowels and screws for screwing the tire rack to the floor are not included due to the different floor conditions. The holes in the flange plates have a diameter of 11 mm.

The BMT tire racks are statically tested and are ideal for car workshops, car dealerships and tire dealers. The innovative storage system consisting of pipe holders and 1 inch pipes convinces with the following advantages:

Gentle tire storage

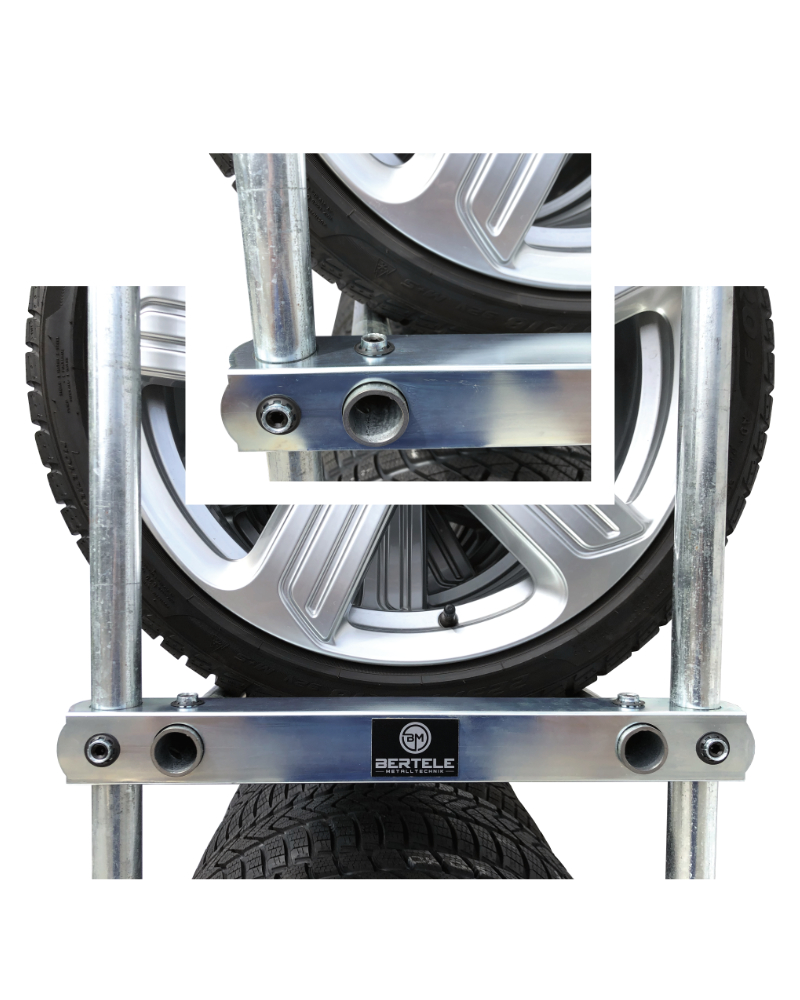

Avoid pressure marks on the stored tires and use BMT tire racks. The tires rest on the 1 inch pipes and are gently stored thanks to the rounded surface.

Solid and galvanized components

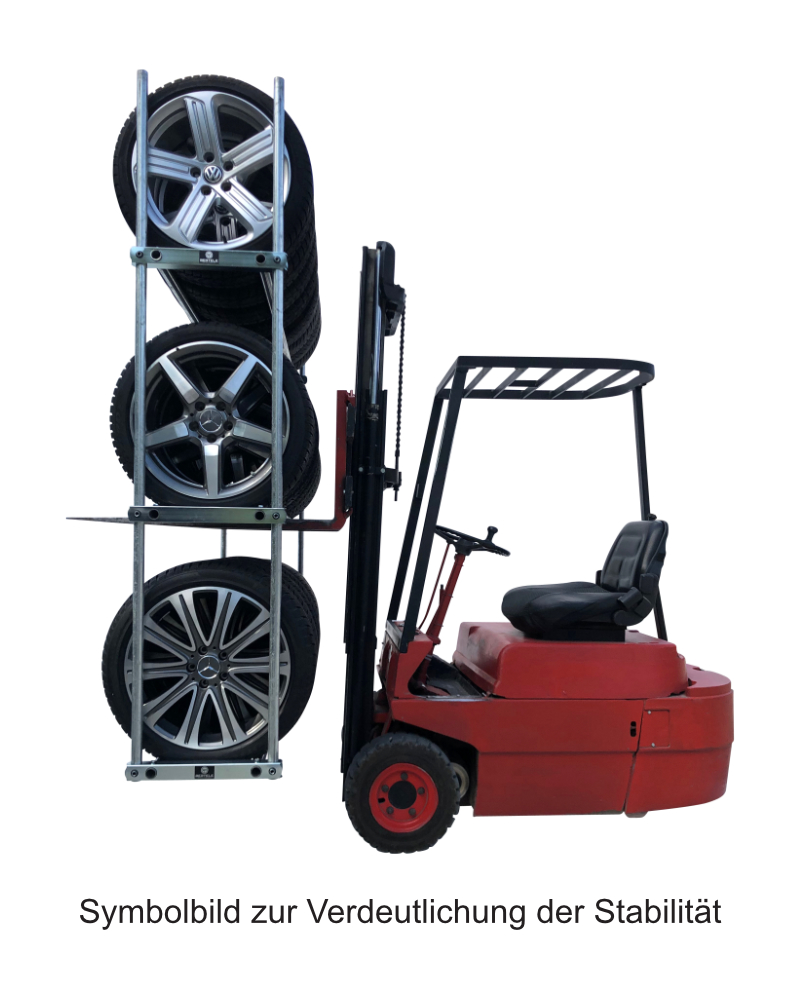

The BMT tire racks consist of very solid and stable components, which are also completely galvanized. The relatively high weight ensures the excellent stability of the tire rack.

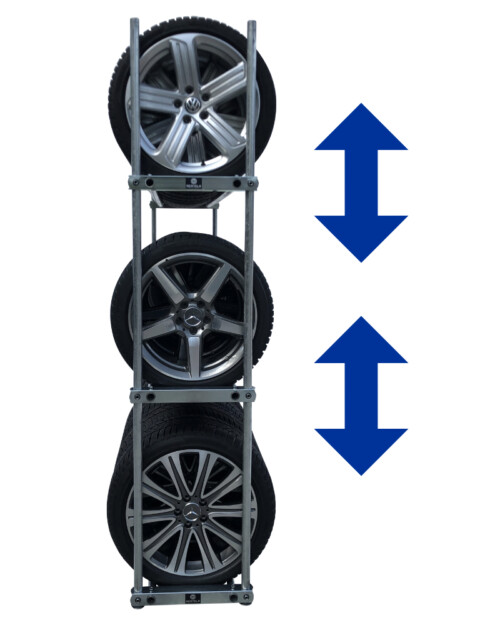

Infinitely height adjustable

The BMT tire racks are infinitely height adjustable. This has the advantage for you that you can optimally adapt the distances to your tire sizes.

Simple and quick assembly

Thanks to the simple but ingenious clamping system, you only need an Allen key to set up the BMT tire racks. In addition, the assembly is quick and easy thanks to the few different components.

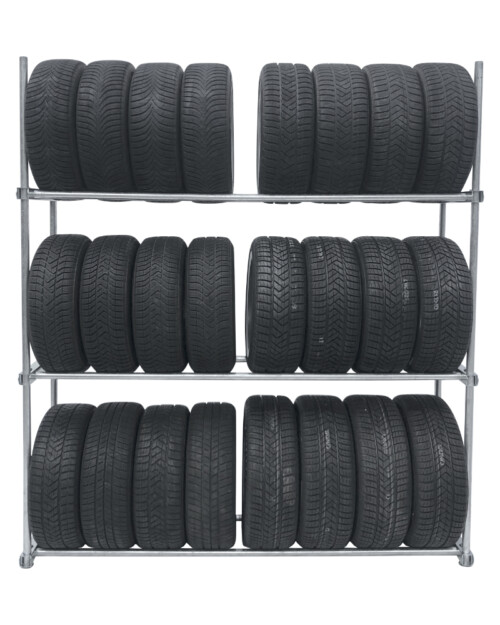

Rack width 2000 mm - for 2 sets of tires each

The rack width of 2000 mm (usable width: 1890 mm) is ideal for storing 2 sets of tires. This means you can align 4 rims to the left and 4 rims to the right, which prevents the tires from tipping over.

Modularly expandable

The BMT tire racks can be modularly expanded with extension racks. This allows you to enlarge your tire storage at any time and as required.

When installing and operating the BMT tire racks, please observe the safety instructions which must be observed in accordance with the tested statics.

Additional information

External dimensions WxHxD	2000 x 3000 x 640 mm
Tire capacity	32 Tires
Load capacity per level	250 kg
Weight	77 kg
Outer diameter of the round pipes	33,7 mm (1 inch)
Dimensions of the square pipes	50x50x2 mm
