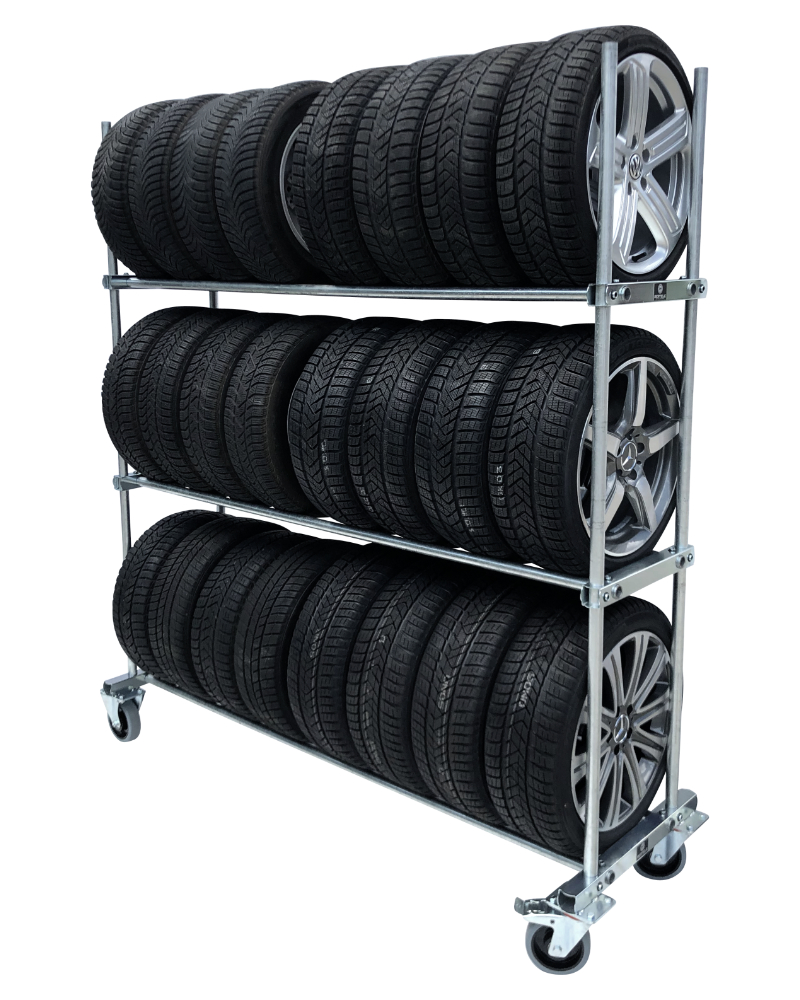

Name: BMT Tire Cart Profi - 3 levels - 24 tires
SKU: 16
Availability: InStock

Description

The BMT tire carts impress with the following advantages:

Solid and galvanized components

The BMT tire carts Profi consist of very solid and stable components, which are also completely galvanized. The relatively high weight ensures the outstanding stability of the tire cart.

Infinitely height adjustable

Thanks to the innovative clamping system, the BMT tire carts are infinitely height-adjustable. This has the advantage for you that you can optimally adapt the distances to the tire sizes.

High quality elastic solid rubber castors

High-quality elastic solid rubber castors from the German manufacturer Wicke are used. The castors are characterized by very low start-up and rolling resistance. You will be amazed at how little effort you can move a fully loaded tire cart yourself.

Usable width 1890 mm - for 2 sets of tires per level

The tire cart width of 2100 mm (usable width: 1890 mm) is ideal for the transport of 2 sets of tires per level. This means you can align 4 rims to the left and 4 rims to the right, which prevents the tires from tipping over.

Notes:

Different dimensions are easily possible and available on request.
The BMT tire carts are equipped with 2 swivel castors with brakes and 2 fixed castors as standard. On request, we can also supply the tire cart with 4 swivel castors at no extra charge.

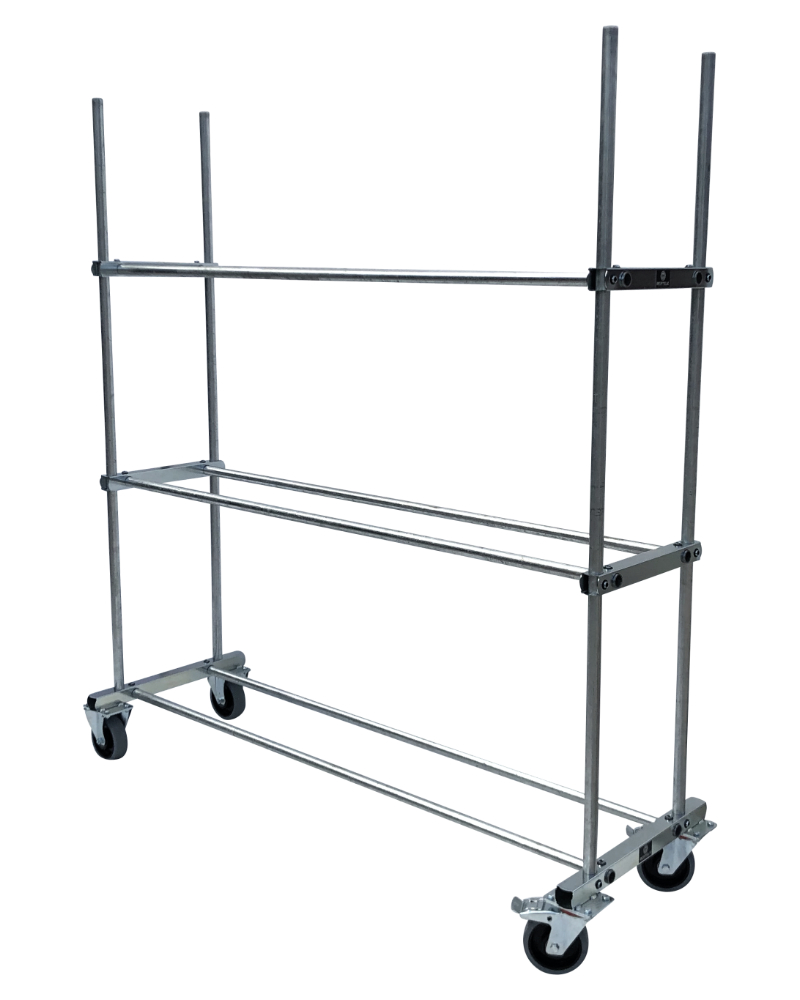

Disassembled delivery as a kit with the following scope:

4 x standpipe 2000 mm
6 x cross pipe 2000 mm
4 x pipe holder 480 mm incl. screws
2 x pipe holder 640 mm with welded flange plates incl. screws
2 x Wicke elastic solid rubber swivel castors with brakes (non-marking, castor diameter: 160mm)
2 x Wicke elastic solid rubber fixed castors (non-marking, castor diameter: 160mm)
16 x M10 screw with nut for screwing the castors
Assembly instruction

When installing and operating the BMT tire carts, please observe the safety instructions which must be observed in accordance with the tested statics.

PROFI	BASIC
Premium product for users with high demand	Entry-level product for price-conscious users
Round pipes: Ø 33,7 mm (1 inch)	Round pipes: Ø 26,9 mm (3/4 inch)
Dimensions of square pipes: 50x50x2 mm	Dimensions of square pipes: 40x40x2 mm
Castors: Ø 160 mm	Castors: Ø 125 mm

Additional information

External dimensions WxHxD	2100 x 2200 x 640 mm
Tire capacity	24 Tires
Load capacity per level	250 kg
Weight	66 kg
Castors	Elastic solid rubber, Ø 160 mm, ball bearing, non-marking
Outer diameter of the round pipes	33,7 mm (1 inch)
Dimensions of the square pipes	50x50x2 mm
